How to Calculate Steel Base Plate Size for Your Project

The right steel base plate size depends on the load being supported, the strength of the supporting surface, the post or column dimensions, and the connection method. A basic calculation involves determining the required bearing area from the applied load and allowable bearing pressure, then selecting suitable steel base plate dimensions while checking thickness and connection requirements.

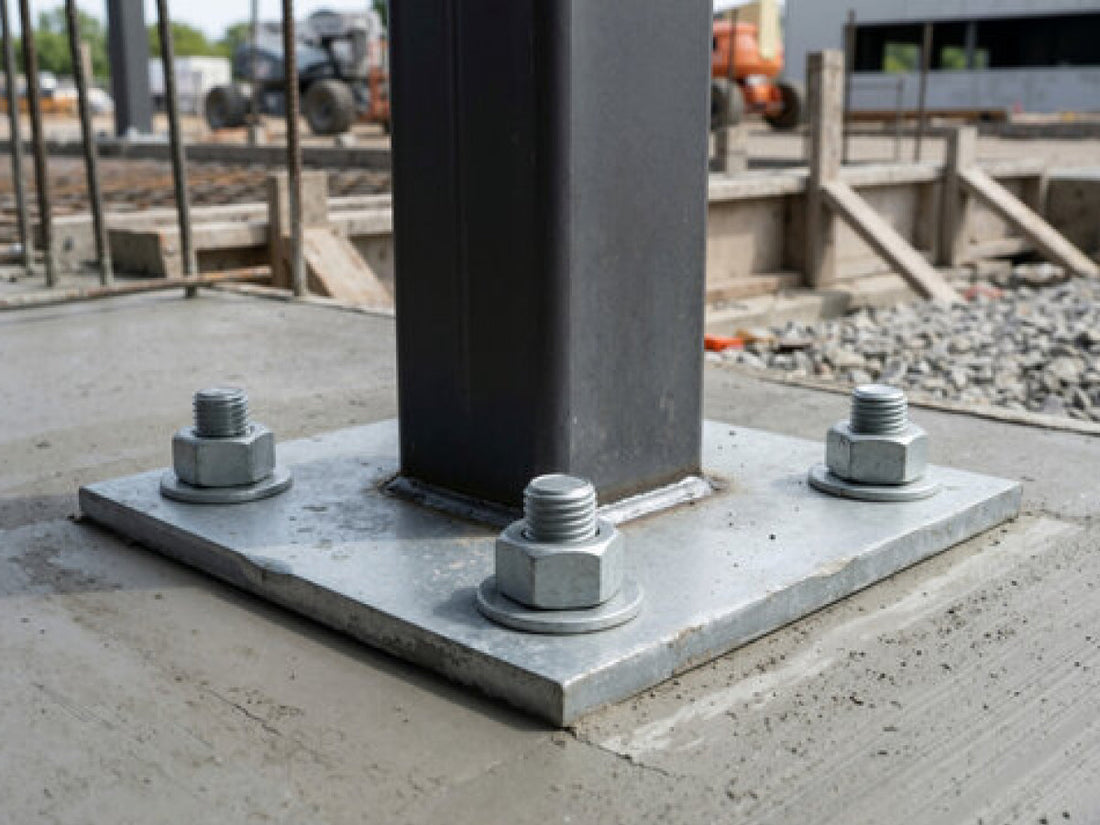

What Is a Steel Base Plate?

A steel base plate is a flat piece of steel installed between a post, column, frame, or other support and the surface below it. It helps distribute the applied load over a larger area rather than concentrating it in one small location.

Base plates are commonly used for:

• Steel posts and columns
• Structural supports
• Machinery and equipment
• Construction projects
• Industrial structures
• Agricultural applications

However, the right plate size can vary from one project to another. The load, support conditions, and installation method all need to be considered.

Why Is Steel Base Plate Size Important?

Choosing the correct size helps distribute loads effectively and provides a stable connection between the supported structure and its foundation.

A plate that is too small may concentrate excessive pressure on the supporting surface. However, selecting a plate that is much larger than necessary may increase material use and cost.

That's why you should select the steel base plate width and length based on the project's actual requirements.

How Do You Calculate Steel Base Plate Size?

A simple way to estimate the required bearing area is:

Required bearing area = Applied load ÷ Allowable bearing pressure

For example, imagine a steel post carrying a 50 kN load and sitting on a surface with an allowable bearing pressure of 0.25 N/mm².

First, convert the load:

50 kN = 50,000 N

Next, calculate the required area:

50,000 ÷ 0.25 = 200,000 mm²

So, the required bearing area is 200,000 mm².

If you want a square plate, a plate measuring approximately 447 mm × 447 mm would provide this area. In practice, you would normally select a suitable available size or specify a custom size after considering the rest of the design.

Keep in mind that this is only a simplified calculation. For structural applications, you also need to consider plate thickness, bending, anchors, connections, eccentric loads, concrete capacity, and applicable Australian standards.

What Factors Affect Steel Base Plate Dimensions?

Consider several factors before choosing a plate.

Applied Load

The load transferred through the plate is a main consideration. Vertical loads, horizontal forces, wind, uplift, and moments may all affect the final design.

Supporting Surface

The material underneath the plate also matters. Concrete, steel, timber, and other surfaces have different load-bearing capacities.

Post or Column Size

The plate needs to provide sufficient area around the supported post or column. A larger post may require a larger plate to distribute the load properly and provide space for connections.

Plate Thickness

Length and width are only part of the calculation. Plate thickness is also important because the plate must resist bending and other stresses created by the supported load.

Connection Requirements

Anchor bolts, welds, and other fasteners need sufficient space. Their location can influence the required plate dimensions and overall design.

What Are Standard Steel Base Plate Sizes?

There is no single universal range of standard steel base plate sizes for every application. Suppliers may offer different combinations of length, width, and thickness.

Some example sizes include:

These are examples, not structural recommendations. The correct size should always be based on the project's requirements.

How Do You Choose Steel Base Plate Width and Length?

Once you have estimated the required bearing area, you can compare different width and length combinations.

For example:

• 300 × 300 mm = 90,000 mm²
• 400 × 400 mm = 160,000 mm²
• 450 × 450 mm = 202,500 mm²
• 500 × 500 mm = 250,000 mm²


If your estimated requirement is 200,000 mm², a 450 × 450 mm plate provides slightly more area.

However, don't make your decision based on area alone. The plate thickness, post size, connection arrangement, supporting surface, and overall structural requirements should also be checked.

How Can EZY STEEL Help?

At EZY STEEL, we offer steel base plate options for different construction and support applications. Explore the available sizes and options in our steel base plate collection.

View EZY STEEL Steel Base Plates

Choosing the right plate starts with understanding your project's load, dimensions, and installation requirements.

Conclusion

Calculating the appropriate steel base plate size starts with determining the load and required bearing area. You can then select suitable width, length, and thickness based on the supporting surface and connection requirements.

However, the area calculation is only a starting point. For structural applications, the complete design should also be checked for bending, anchors, connections, and other relevant factors. By taking these details into account, you can choose a base plate that is better suited to the job rather than relying on a one-size-fits-all option.

People Also Ask

Q1: What is the most common steel base plate size?

There is no single standard size for every application. Common sizes vary depending on the supported load, post dimensions, and intended use.

Q2: How thick should a steel base plate be?

Thickness depends on the load, plate dimensions, material, support conditions, and connection design. Determine it through the appropriate structural checks.

Q3: Can a base plate be larger than the steel post?

Yes. Base plates are often larger than the post to provide additional bearing area and space for connections.

Q4: How do you calculate base plate area?

Multiply the plate's width by its length. For example, a 400 × 400 mm plate has an area of 160,000 mm².

Q5: Are custom steel base plate dimensions available?

Custom dimensions may be suitable when standard sizes do not meet project requirements. Confirm the required dimensions before fabrication or ordering.

Q6: Do all steel posts need a base plate?

Not necessarily. Whether a base plate is required depends on the structural design, installation method, and type of support being used.
