Navigate Your Way: Understanding the Types of Castor Wheels

Choosing the right castor wheels depends on your equipment, load, floor surface, and working environment. From heavy-duty stainless steel caster wheels for demanding applications to stainless steel casters with brakes for controlled positioning, different castors serve different purposes. Understanding the main types can help you choose industrial caster wheels that provide reliable movement, stability, and long-term performance.

What Are Castor Wheels?

Castor wheels are wheel assemblies fitted to equipment, carts, trolleys, racks, and machinery to make them easier to move. Depending on their design, they can allow equipment to travel in a straight line, change direction, or remain securely positioned.

The right castor can make moving heavy equipment easier while reducing unnecessary handling effort.

What Are the Different Types of Castor Wheels?

Castors are available in several configurations. Each type is designed for specific movement and handling requirements.

1. Swivel Castors

Swivel castors rotate around a vertical axis, allowing equipment to turn in different directions. This makes them a practical choice when you need good manoeuvrability.

For example, swivel castors are often used on:

• Trolleys and carts
• Workshop equipment
• Mobile storage units
• Material-handling equipment

They are especially useful in smaller work areas where equipment needs to move around corners or between obstacles.

2. Fixed Castors

Fixed castors move in a straight direction and do not swivel. They provide stable and predictable movement.

For example, a trolley may combine fixed castors with swivel castors. This arrangement provides directional stability while still allowing the trolley to be steered.

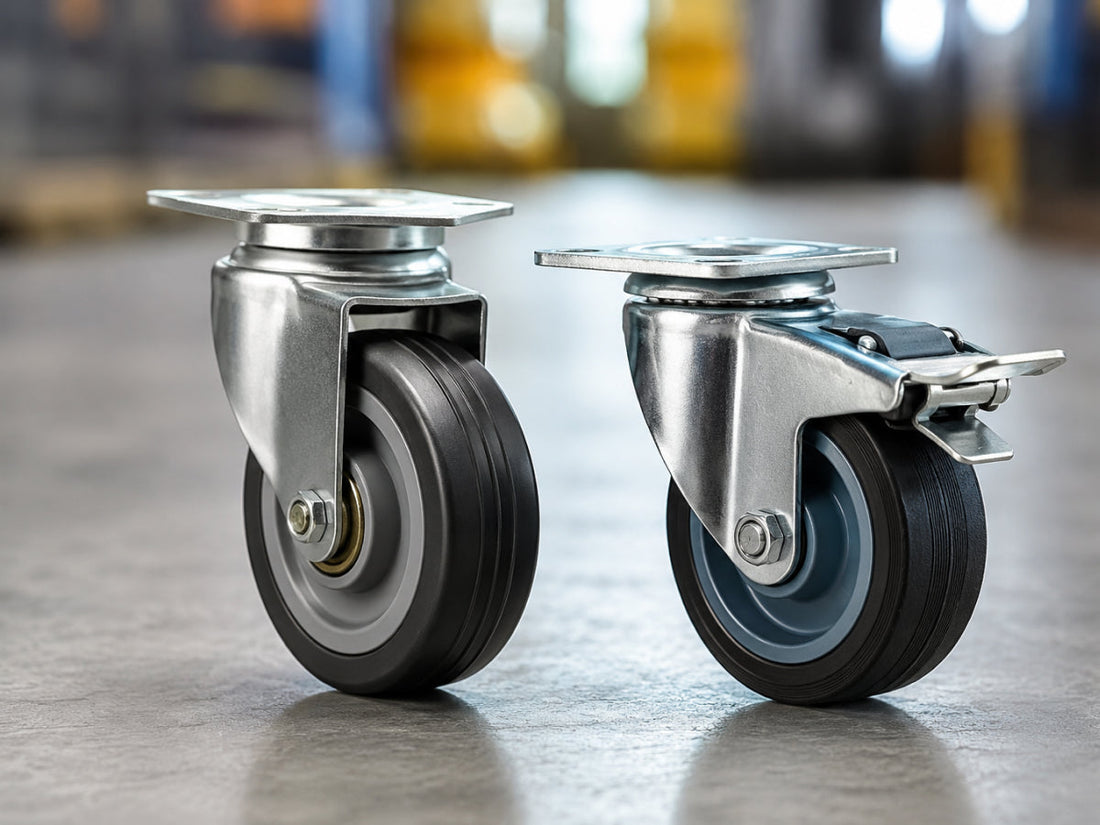

3. Castors With Brakes

Some equipment needs to move when required but remain firmly in place during operation. Stainless steel casters with brakes can provide additional control in these situations.

They can be useful for:

• They can be useful for:
• Industrial trolleys
• Workbenches
• Mobile storage systems
• Laboratory equipment
• Commercial equipment

However, the brake should be suitable for the equipment's weight and intended application.

4. Heavy-Duty Castors

When equipment carries heavy loads, standard castors may not provide enough support. Heavy-duty castors are designed for applications where higher load capacity is required.

Heavy-duty stainless steel caster wheels can be a suitable option when you need both strength and corrosion resistance. Before choosing them, always check the manufacturer's load rating and consider the combined weight of the equipment and its maximum load.

5. Stainless Steel Castors

Stainless steel castors are well suited to environments where resistance to corrosion is important. For this reason, stainless steel casters for industrial equipment can be useful in areas exposed to moisture, frequent cleaning, or demanding working conditions.

How Do You Choose the Right Castor Wheels?

Choosing castors involves more than simply selecting the strongest option. Consider these factors:

Why Is Load Capacity Important?

Load capacity is one of the first things you should check. If a castor is regularly overloaded, it may wear faster, become difficult to move, or fail unexpectedly.

Also, do not assume that four wheels will always carry an equal share of the load. Uneven floors or an unevenly distributed load can put additional pressure on individual castors.

That’s why it is important to choose a suitable load rating rather than selecting a castor based on size alone.

How Can You Maintain Castor Wheels?

Once you have chosen the right castors, regular checks can help keep them working properly. Look for worn wheels, damaged frames, loose mounting hardware, or brakes that are not working as expected.

It is also helpful to:

1. Remove dirt and debris from the wheels.
2. Check mounting points regularly.
3. Test the brakes from time to time.
4. Stay within the recommended load capacity.
5. Replace damaged or badly worn components.

With simple maintenance, you can identify problems before they affect equipment movement.

How Can EZY STEEL Help?

At EZY STEEL, we offer castor wheel options for different equipment and handling requirements. Our range can help businesses find suitable solutions based on factors such as load capacity, movement, mounting requirements, and operating conditions.

Whether you need industrial caster wheels, heavy-duty options, or stainless steel castors, reviewing the specifications before purchasing can help you make a more informed choice.

Conclusion

Choosing the right castor wheels starts with understanding your equipment, load, floor, and working environment. Swivel, fixed, braking, heavy-duty, and stainless steel castors each offer specific advantages.

By matching the castor to your application, you can improve mobility, stability, and equipment handling. Explore the EZY STEEL castor range to find a solution that fits your requirements.

People Also Ask

Q1: What is the difference between fixed and swivel castors?

Fixed castors move in a straight line, while swivel castors rotate to allow easier changes in direction. The best choice depends on your equipment and required maneuverability.

Q2: Are stainless steel castors suitable for industrial equipment?

Yes. Stainless steel castors can suit industrial applications where durability and corrosion resistance are important. Always check the product specifications and load rating.

Q3: When should I use castors with brakes?

Castors with brakes are useful when equipment needs to be moved but also held securely in position during operation or loading.

Q4: How do I choose the right castor load capacity?

Calculate the combined weight of the equipment and maximum load, then consider uneven weight distribution and choose a suitable safety margin.

Q5: Are larger castor wheels always better?

No. Larger wheels can handle certain uneven surfaces more easily, but the ideal size depends on load, floor conditions, clearance, and equipment design.
