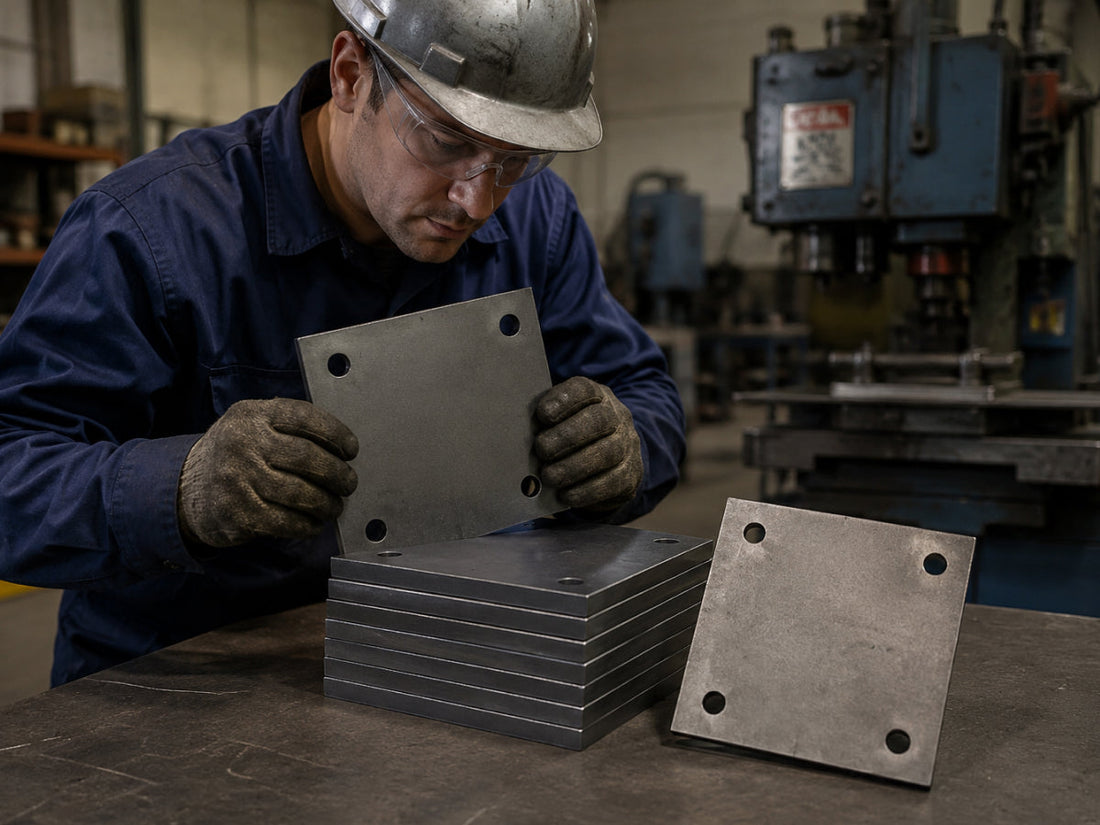

What Are the Most Common Steel Base Plate Sizes?

If you’re wondering what the most common steel base plate sizes are, the simple answer is this: they typically range from 100x100 mm to 400x400 mm, with thicknesses between 5 mm and 20 mm, depending on the application. These sizes are widely used across construction, fabrication, and structural projects because they offer the right balance of strength, stability, and versatility.

At EZY STEEL, we regularly help customers choose the right base plate size based on load requirements, column dimensions, and installation conditions. So, in this guide, we’ll walk you through standard sizes, thickness options, and how to select the best fit for your project.

What Is a Steel Base Plate?

To begin with, a steel base plate is a flat steel component designed to distribute structural loads from columns, posts, or beams onto a foundation, usually concrete. In simple terms, it acts as a bridge between the structure and the ground.

As a result, it improves stability, prevents sinking, and ensures even weight distribution.

Key Functions:

• Transfers load from the structure to the foundation
• Provides a secure anchoring surface
• Improves overall structural stability
• Helps align and level columns during installation

What Are the Most Common Steel Base Plate Sizes?

Now that you understand their purpose, let’s look at the most common steel base plate sizes used in the industry.

In general, the size you need depends on the type of project. However, the following standard sizes are widely used across residential, commercial, and industrial applications.

Standard Steel Base Plate Sizes

Overall, these standard steel base plate sizes are easily available and suitable for most fabrication and construction needs.

Standard Steel Base Plate Thickness

In addition to size, the thickness of the steel base plate is equally important. In fact, thickness directly affects how much load the plate can handle without bending or failing.

Common Thickness Options:

In most cases, a thickness of 10-12 mm works well. However, for heavier loads or demanding environments, thicker plates are recommended.

How Steel Base Plate Dimensions Affect Performance

At this point, it’s important to understand that choosing the right steel base plate dimensions is critical for both safety and durability.

Let’s break down how different factors influence performance:

1. Load Distribution

First of all, larger plates spread the load over a wider area. This reduces pressure on the foundation and helps prevent damage.

2. Stability

Similarly, bigger base plates improve stability—especially for taller or heavier structures.

3. Bolt Placement

In addition, proper plate size ensures there’s enough space for anchor bolts, which is essential for secure installation.

4. Structural Integrity

Finally, the correct thickness prevents bending, cracking, or deformation under load.

How to Choose the Right Steel Base Plate Size

So, how do you choose the right size? While standard options are helpful, the best choice always depends on your specific project.

Here are a few key factors to consider:

1. Load Requirements

Naturally, heavier loads require larger and thicker plates.

2. Column or Post Size

As a rule of thumb, the base plate should always be larger than the column it supports.

3. Anchor Bolt Layout

Make sure there’s enough space for bolts without weakening the plate.

4. Foundation Type

For example, concrete foundations often need larger plates to distribute weight evenly.

5. Environmental Conditions

Lastly, outdoor or industrial environments may require thicker plates for added durability and resistance.

Common Applications of Steel Base Plates

To make things clearer, let’s look at where these plates are commonly used.

Residential Applications

For smaller projects, base plates are often used in:

• Fence posts
• Pergolas
• Deck supports
• Carports

Commercial Applications

In commercial settings, they are typically used for:

• Structural columns
• Steel frameworks
• Machinery bases

Industrial Applications

Meanwhile, in industrial environments, base plates support:

• Heavy equipment
• Warehouse structures
• Infrastructure projects

Custom vs Standard Steel Base Plate Sizes

At this stage, you might be wondering whether to choose standard or custom sizes.

When to Choose Standard Sizes:

• When you need quick availability
• When working within a budget
• For general-purpose applications

When to Choose Custom Sizes:

• When load requirements are unique
• For specialized structural designs
• When working with non-standard column sizes

At EZY STEEL, we provide both standard and custom steel base plate dimensions to meet your exact project needs.

Benefits of Using the Right Steel Base Plate Size

Choosing the correct size doesn’t just improve performance—it also offers long-term benefits:

• Improved safety and stability
• Better load distribution
• Longer structural lifespan
• Reduced maintenance costs
• Stronger overall foundation support

Quick Summary: Common Steel Base Plate Sizes

To sum it up:

• Typical sizes: 100x100 mm to 400x400 mm
• Common thickness range: 5 mm to 20 mm+
• Most used sizes: 200x200 mm to 300x300 mm
• Most common thickness: 10 mm to 12 mm

Why Choose EZY STEEL for Steel Base Plates?

At EZY STEEL, we focus on delivering reliable, high-quality steel solutions tailored to your project.

What We Offer:

• A wide range of standard steel base plate sizes
• Custom fabrication options
• Durable, high-quality materials
• Expert guidance to help you choose the right dimensions

So whether your project is residential, commercial, or industrial, we’re here to help you find the right solution.

Conclusion

In conclusion, the most common steel base plate sizes range from 100x100 mm to 400x400 mm, with thicknesses between 5 mm and 20 mm. However, the ideal choice always depends on your specific load requirements, structural design, and installation conditions.

By understanding steel base plate dimensions and thickness, you can ensure better safety, stability, and long-term performance. And if you’re unsure, working with experts like EZY STEEL can make the decision much easier.

People Also Ask

Q1: What is the standard size of a steel base plate?

Typically, standard sizes range from 100x100 mm to 400x400 mm, depending on the application.

Q2: What thickness should a steel base plate be?

Most projects use 10 mm to 12 mm, while heavier structures may require 16 mm or more.

Q3: How do I choose the right steel base plate size?

You should consider load capacity, column size, bolt layout, and foundation type.

Q4: Are custom steel base plate sizes available?

Yes, custom sizes are available for projects with specific structural or load requirements.

Q5: What material is used for steel base plates?

Steel base plates are usually made from mild steel or structural steel, depending on the required strength and durability.
