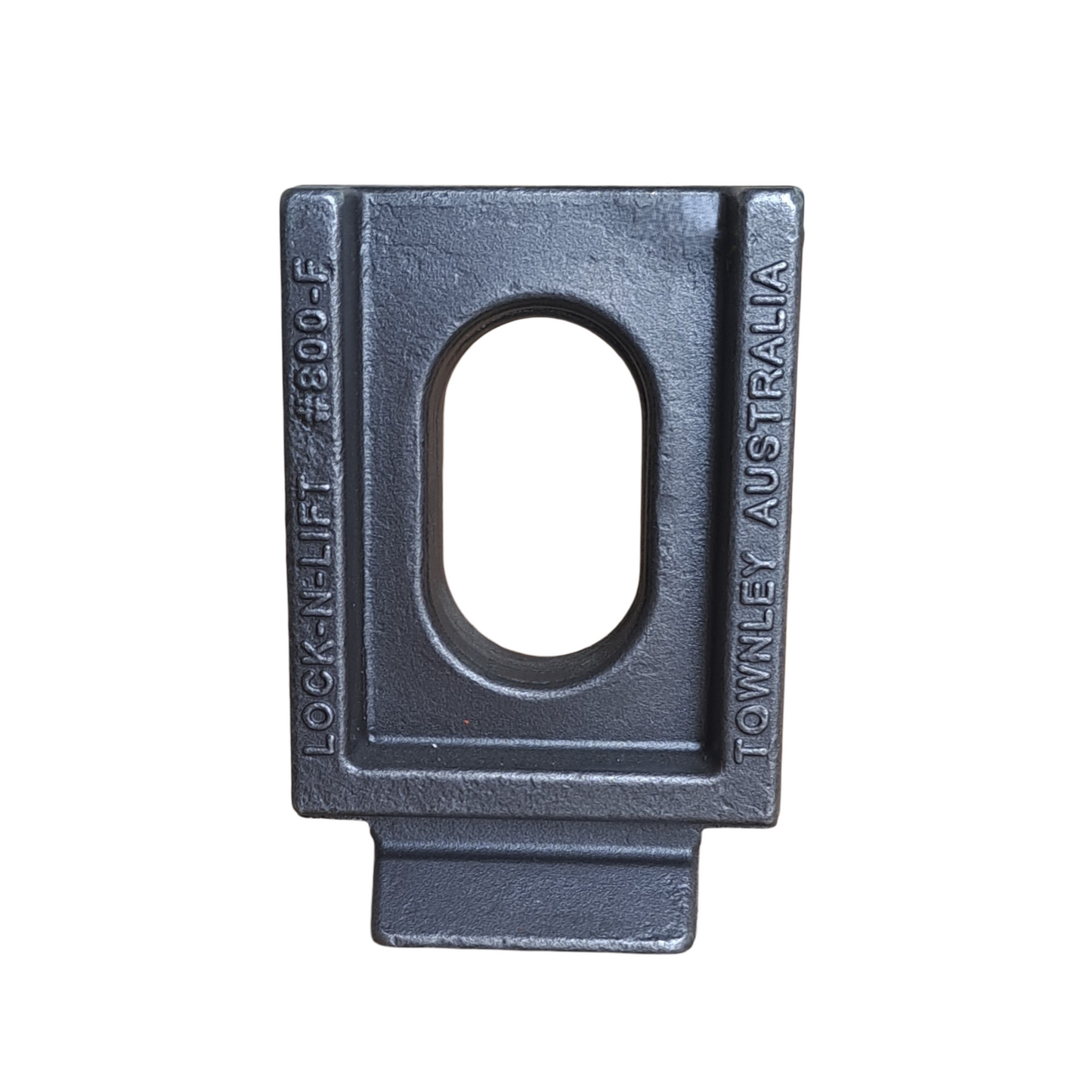

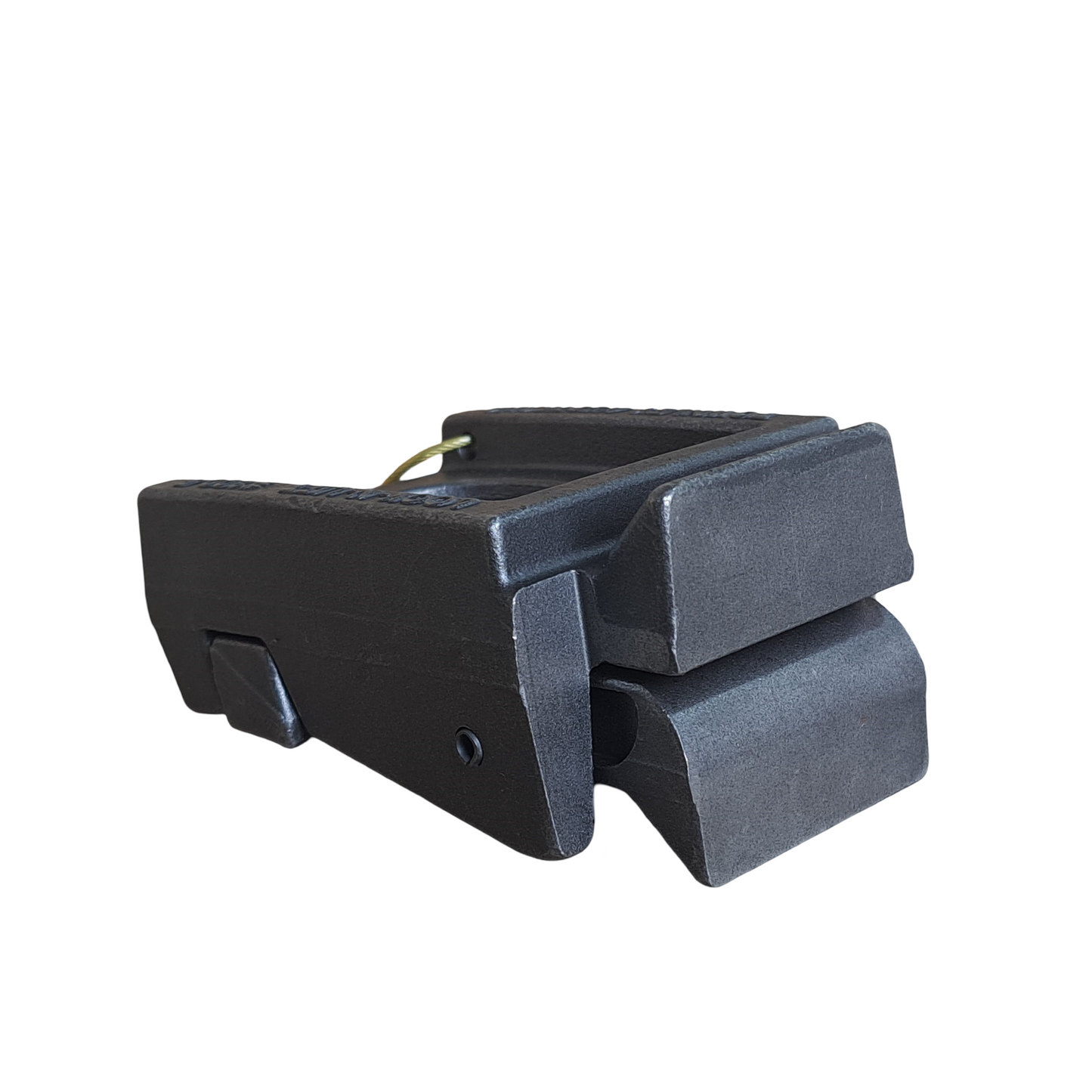

Lock-N-Lift Road Plate Lifting Tool

Lock-N-Lift Road Plate Lifting Tool

Lifting Tool ONLY - Receiver plate needs to be purchased separately 🔗

The industry benchmark for safe and efficient handling of road plates, the Lock-N-Lift Road Plate Lifter is designed to maximize worker safety through its revolutionary design. This innovation eliminates the need to place hands, feet, or tools under a road plate.

Key Features

• Safe and Secure Connection: The lifting tool connects seamlessly to the receiver plate (purchase separately 🔗) via a dovetail mechanism, ensuring a secure lock.
• Enhanced Compatibility: The elongated eye accommodates lifting chain slings, hooks, or shackles for safe and straightforward lifting operations.
• Licensed Manufacturing: Manufactured by Townley under license, adhering to the original patent holder’s design for guaranteed reliability.
• Australian-Made: Crafted with high-tensile Australian steel, ensuring superior quality and performance.
• Forged Construction: Forged, not cast, for enhanced durability and structural integrity, eliminating porosity issues.
• Certified Standards Compliance: NATA tested in accordance with AS4991, ensuring reliability and safety.
• Exceptional Load Rating: Rated to 5 tonnes with a design factor of 5:1.

The Lock-N-Lift Road Plate Lifter is your ultimate solution for safer, faster, and easier road plate handling.

Specifications:

• Product Code: #800
• Dimensions: 76.2mm (3-1/4″) L × 57.15mm (2-1/4″) W × 101.6mm (4-3/4″) H
• Material: AISI 4340 Chrome Moly Steel
• Safe Working Load: 3,600 kg (8,000 pounds)
• Weight: 2.1 kg (4.6 pounds)
• Heat Treatment: Normalized, Quenched & Tempered
• Safety Factor: 5:1

USER GUIDE & WELDING INSTRUCTIONS 🔗
