Lock-N-Lift - Weld-in Receiver Plate

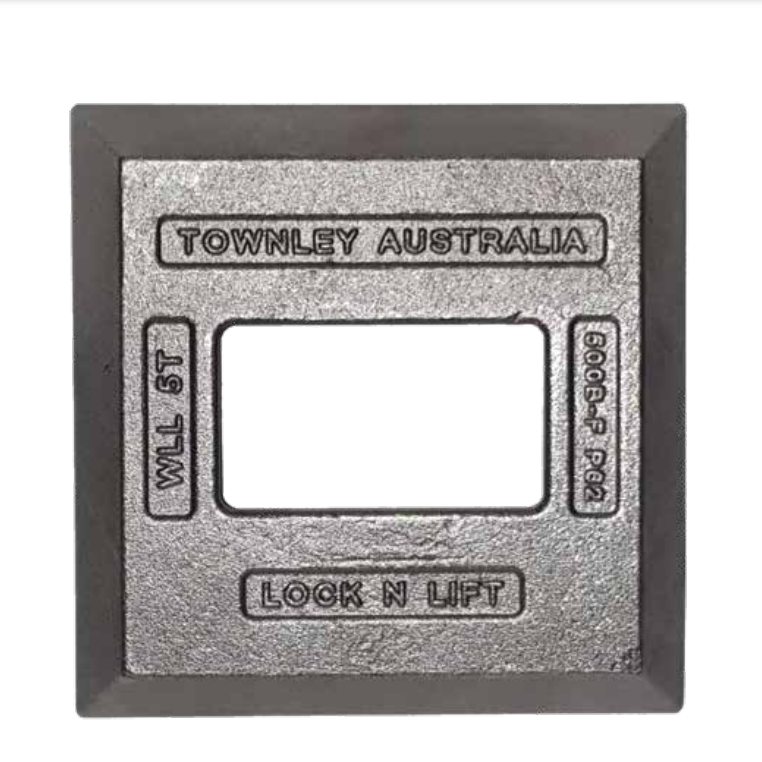

Lock-N-Lift - Weld-In Receiver Plate

Receiver Plate ONLY - Lifting Tool needs to be purchased separately 🔗

The industry benchmark for safe and efficient handling of road plates, the Lock-N-Lift Road Plate Lifting system is designed to maximize worker safety through its revolutionary design. This innovation eliminates the need to place hands, feet, or tools under a road plate, even during the installation of the weld-in receiver plate.

Key Features

• Two-Part System: Comprising a lifting tool assembly (purchase separately) and a weld-in receiver plate.
• Safe and Secure Connection: The lifting tool connects seamlessly to the receiver plate via a dovetail mechanism, ensuring a secure lock.
• Enhanced Compatibility: The elongated eye accommodates lifting chain slings, hooks, or shackles for safe and straightforward lifting operations.
• Weld Procedure Compliance: The receiver plate is welded into the road plate in accordance with the provided weld procedure.
• Licensed Manufacturing: Manufactured by Townley under license, adhering to the original patent holder’s design for guaranteed reliability.
• Australian-Made: Crafted with high-tensile Australian steel, ensuring superior quality and performance.
• Forged Construction: Forged, not cast, for enhanced durability and structural integrity, eliminating porosity issues.
• Certified Standards Compliance: NATA tested in accordance with AS4991, ensuring reliability and safety.
• Exceptional Load Rating: Rated to 5 tonnes with a design factor of 5:1.

The Lock-N-Lift Road Plate Lifter is your ultimate solution for safer, faster, and easier road plate handling.

Specifications:

• Product Code: #800
• Material: AISI 4340 Chrome Moly Steel
• Safe Working Load: 3,600 kg (8,000 pounds)
• Heat Treatment: Normalized, Quenched & Tempered
• Safety Factor: 5:1

USER GUIDE & WELDING INSTRUCTIONS 🔗
