Steel Road Plate - 2400 x 1200 x 25mm Thick

Steel Road Plate - 2400 x 1200 x 25mm Thick

Regular price $1,550.00 AUD
Regular price Sale price $1,550.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Weight: approx. 565 kg

Price includes GST. Buy online and pick up from Blacktown, or get a delivery quote to your site (flat-top or Hiab).

Get a delivery quote

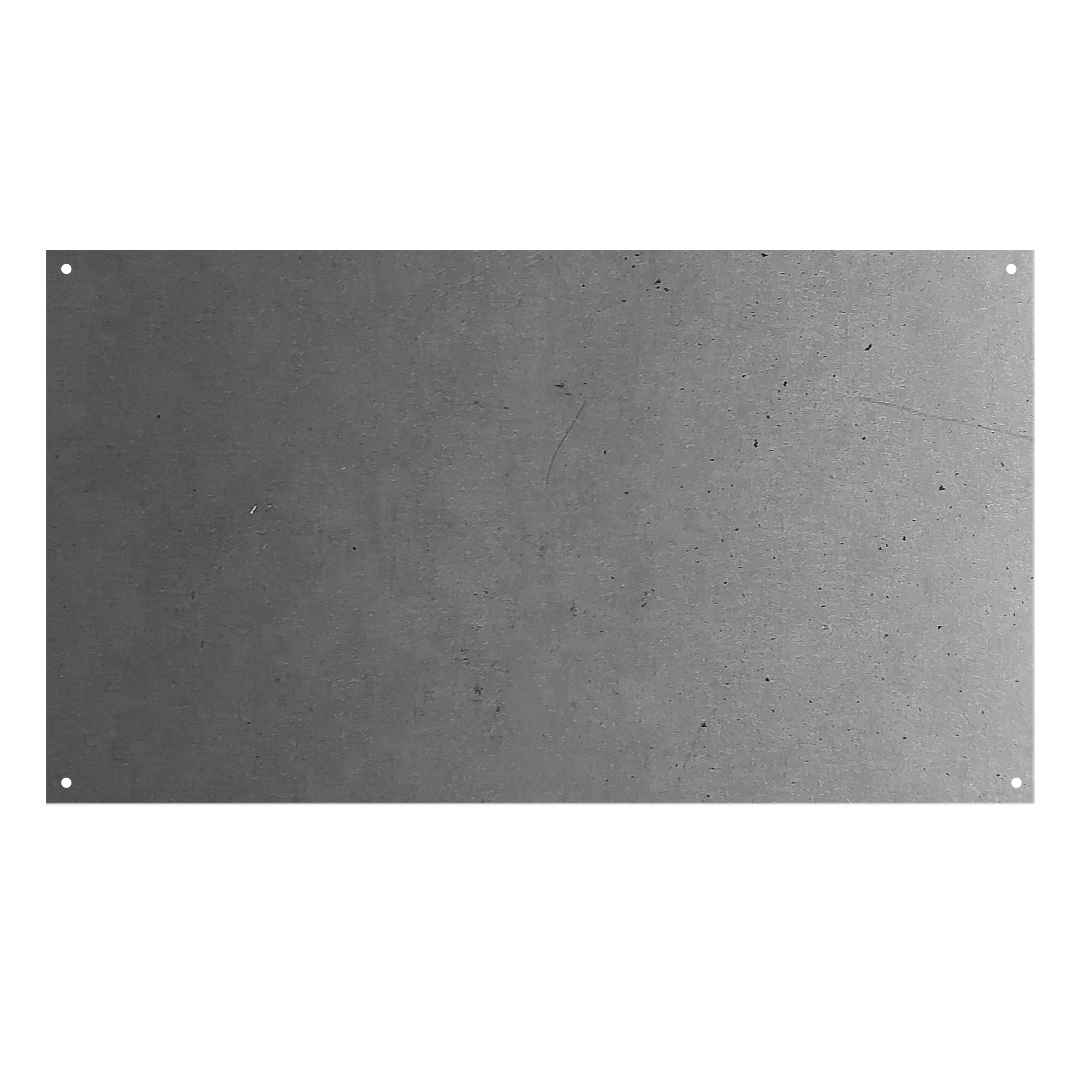

2.4m x 1.2m x 25mm Steel Road Plate – Heavy Duty Temporary Road Covering

Keep your worksite safe and accessible with our mild steel road plates, purpose-built for heavy-duty temporary road coverage over trenches, excavations, and unstable terrain. Designed to handle the demands of construction, civil, and infrastructure projects, these plates are a trusted solution for contractors across Australia.

25mmThick
2400 × 1200Size (mm)
250 GradeMild steel

Why Choose Our 25mm Steel Road Plates?

Our road plates are manufactured from 250 Grade Mild Steel (350 Grade available on request), offering exceptional strength and durability for high-traffic worksites. The 25mm thickness is suited to heavy-duty vehicle loads, making it ideal for vehicle access, plant machinery crossings, and busy construction zones.

Product Specifications

Material
250 Grade Mild Steel (350 Grade available on request)
Size
2400mm x 1200mm x 25mm thickCustom sizes available: contact us for custom dimensions, thicknesses, and hole configurations. Custom sizes, holes and cut-outs cut to your drawing.
Lifting/Securing Holes
Standard on every plate. Available to your specifications – please provide your requirements at time of enquiry

Features & Optional Extras

Every plate comes standard with lifting holes. Items 3 to 6 are optional extras. They are not included unless named in the product title, and are quoted on request.

  • 1
    Steel plate Standard

    Heavy-duty mild steel, 20mm to 50mm thick, in standard sizes or cut to a custom size.

  • 2
    Lifting holes Standard

    Near each corner, for chains or shackles, so the plate can be lifted and placed with an excavator or crane.

  • 3
    Pin holes Optional extra

    One in each corner. Steel pins are driven through into the ground to stop the plate shifting under traffic.

  • 4
    Centre Lock-N-Lift Optional extra

    A weld-in receiver in the middle. The Lock-N-Lift tool lifts the plate from one point, level and balanced. View the Lock-N-Lift Weld-in Receiver Plate.

  • 5
    Non-slip coating Optional extra

    Gritted coating for extra grip for pedestrians and vehicles, especially in the wet.

    Gritted anti-slip paint, independently tested P5 to AS 4586:2013 (wet pendulum). Priced on request. Learn more about anti-slip road plates.

  • 6
    ID or logo plate Optional extra

    Welded to the top with your company name, logo or plate number, so plates are easy to identify and track.

Road Plate Thickness Guide

16mm Pedestrians and light/small vehicles
This plate 20–50mm Heavy-duty vehicles and plant machinery

Installation Guidelines for Steel Road Plates

Proper installation ensures safety and compliance on your worksite:

  1. Select the correct size for your trench or excavation opening
  2. Ensure adequate overlap – plates must extend at least 300mm (one foot) beyond the pavement edge onto stable ground
  3. Secure plates properly and feather edges with asphalt to eliminate trip hazards
  4. Weld adjoining plates where multiple plates butt up against each other
  5. Counter-sink plates on uneven road surfaces where required
  6. Apply anti-skid coating in areas with vehicle or pedestrian traffic
  7. Mark plate edges with paint or reflective tape for improved visibility
  8. Display advance warning signage such as “Steel Plate Ahead” or “Bump”
  9. Monitor conditions throughout the day – reassess trench walls and road surfaces regularly
  10. Conduct end-of-day inspections before leaving the site unattended

Important Safety Notice

We do not provide structural load data for our road plates. It is the customer’s responsibility to confirm that the selected plate is appropriate for the intended application. We strongly recommend consulting a structural engineer or qualified professional prior to use.

Frequently Asked Questions

What is a steel road plate used for?

Steel road plates are used to cover trenches, excavations, and unstable ground to provide temporary vehicle and pedestrian access during construction and civil works.

Can I get custom sizes?

Yes – we offer custom sizes, thicknesses, and hole configurations. Contact us with your project requirements.

How soon can I have them completed?

Lead times vary depending on the configuration:

Standard sized plate with holes approximately 2–3 days
With LockNLift fabricated into plate approximately 4–5 days
With non-slip coating applied approximately 7–10 days
What thickness is suitable for heavy vehicles?

We recommend 20–50mm steel road plates for heavy-duty vehicle applications including trucks and construction plant.

Is delivery available?

Yes – pick-up and delivery options are available. We offer flat top bed or Hiab delivery. Please use the “Get a delivery quote” button for pricing as shipping is not included in the listed price.
