Steel Road Plate With Non Slip Coating - 2400 x 1200 x 20mm Thick

2.4 Metres x 1.2 Metres x 20mm Thick Non-Slip Steel Road Plate – Heavy Duty Temporary Road Covering

Our non-slip steel road plates are finished with a durable anti-slip coating that gives added traction and enhanced safety for both vehicles and pedestrians. They are ideal for temporary access over unstable terrain, trenches, and areas of construction or excavation work.

Coating & colour options:

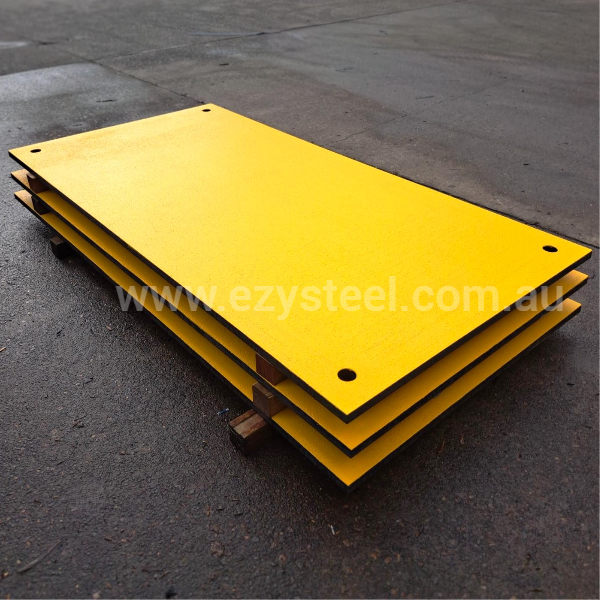

• Safety yellow – for pedestrian use

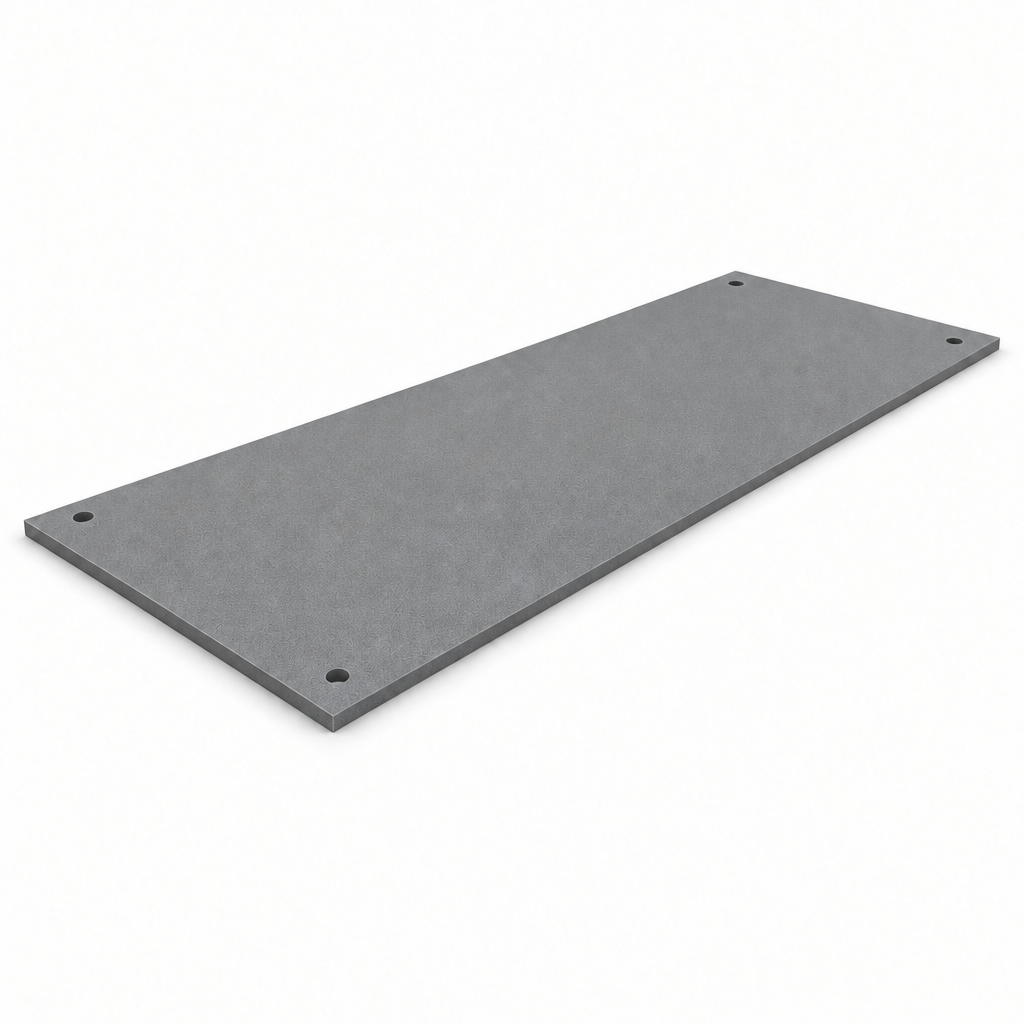

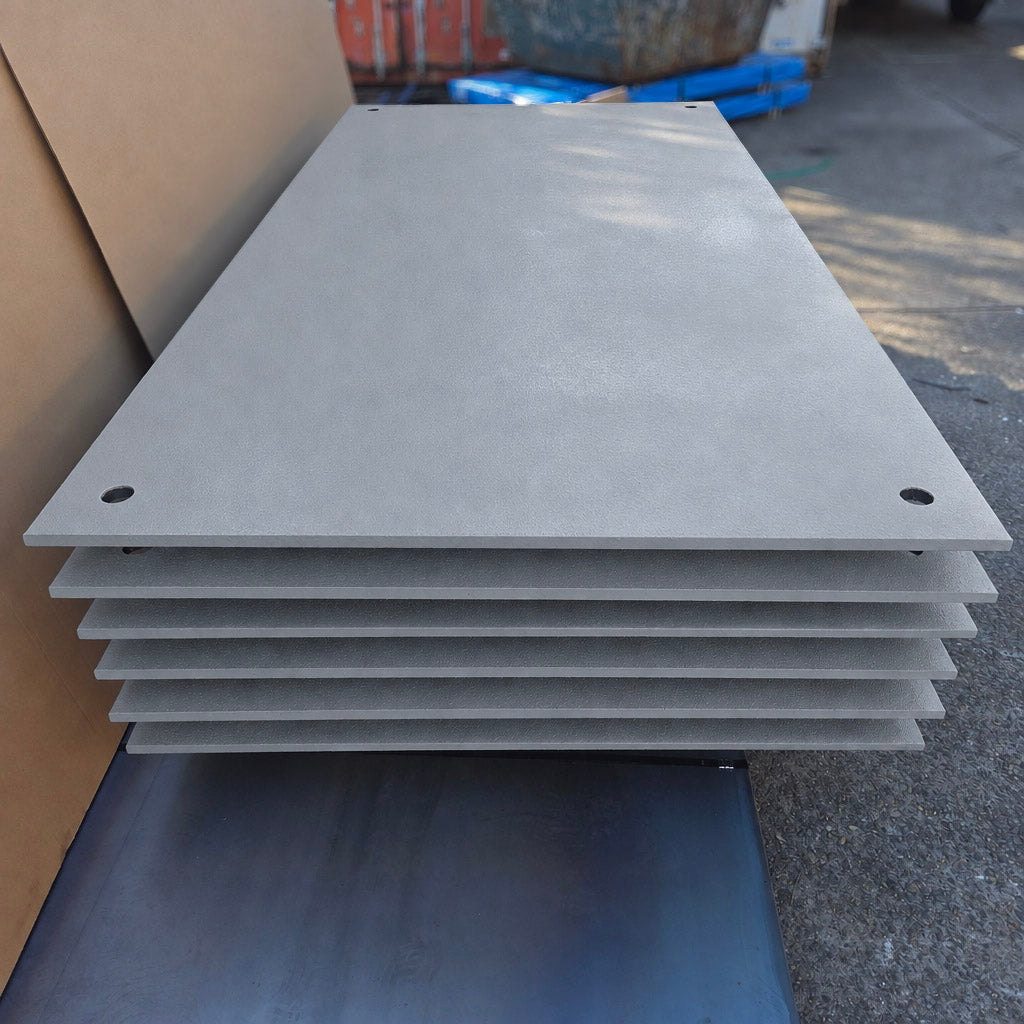

• Compliant shades of grey or red – for road use

Manufactured from 250 Grade Mild Steel (350 Grade available on request), the 20mm thickness is suited to heavy-duty vehicle loads, making it ideal for vehicle access, plant machinery crossings, and busy construction zones.

Product Specifications

• Material: 250 Grade Mild Steel (350 Grade available on request)
• Standard Size: 2400mm x 1200mm x 20mm thick (contact us for more options)
• Coating: Non-slip coating in safety yellow (pedestrian use), or compliant grey or red (road use) – please contact us for coating options
• Lifting/Securing Holes: Please provide your lifting/securing point requirements at time of enquiry
• Custom Sizes Available: Contact us for custom dimensions, thicknesses, and hole sizes

Road Plate Thickness Recommendations

• 16mm: Suitable for pedestrians and small vehicles
• 20 – 25mm: Suitable for heavy-duty vehicles

Please note: We do not provide any loading data on our road plates. It is the customer's responsibility to ensure that the road plate being used is suitable for the job intended. We suggest consulting an appropriate professional, such as a structural engineer, before using our road plates.

Guidelines for Road Plate Usage

• Ensure the correct size is selected.
• Provide adequate overlap – road plates should extend at least one foot beyond the pavement opening onto stable ground.
• Properly secure and feather edges with asphalt.
• Welding is recommended when multiple steel plates are used and they butt up to each other.
• Counter-sink plates when necessary for uneven roadways.
• Apply an anti-skid coating to plates where required.
• Mark or paint edges of steel plates for improved visibility.
• Display proper advance warning signs, such as "Steel Plate Ahead" or "Bump".
• Continuously reassess roadway and trench wall conditions throughout the day for safety.
• Conduct end-of-day inspections before leaving the job.

🚚 Pick-up and delivery available – please contact us for coating and delivery options. Price shown is exclusive of shipping.
